190
Category:Rexroth Pumps
Release date:2022-05-19 16:05:16

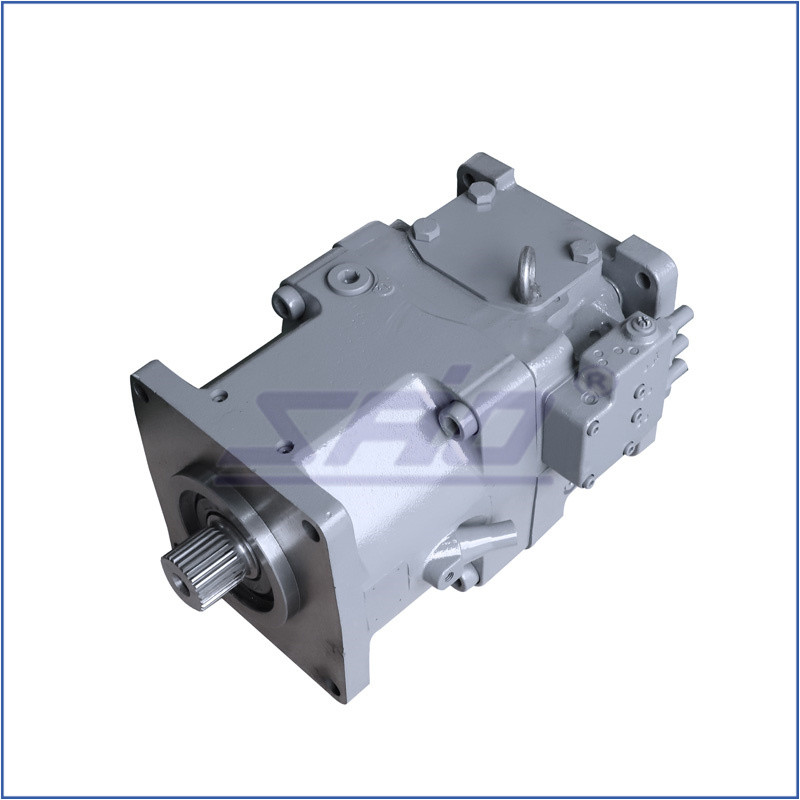

  • All-purpose high pressure pump with through drive
  • Size 40 … 260
  • Nominal pressure 350 bar
  • Maximum pressure 400 bar
  • Open circuit
  • Metric version
FEATURES
  • Through drive for mounting of further pumps up to same nominal size
  • Optional with charge pump for the nominal sizes 130…260
  • Particularly high speeds are possible with impeller pump version (A11VLO)
  • Large variety of controls
  • Swashplate design

Table of values

Size

40 60 75 95 130 145 190 260 130 145 190 260

Version

Standard With charge pump

Displacement
geometric, per revolution



Vg max

cm³

42 58.5 74 93.5 130 145 193 260 130 145 193 260

Nominal pressure



pnom

bar

350 350 350 350 350 350 350 350 350 350 350 350

Maximum pressure



pmax

bar

400 400 400 400 400 400 400 400 400 400 400 400

Maximum speed

at Vg max

nnom

rpm

3000 1) 2700 1) 2550 1) 2350 1) 2100 1) 2200 1) 2100 1) 2000 1) 2500 2) 2500 2) 2500 2) 2300 2)

Flow

at Vg max and nnom

qV nom

l/min

126 158 189 220 273 319 405 468 325 363 483 598

Power

at qV nom and pnom

P

kW

74 92 110 128 159 186 236 273 190 211 281 349

Torque

at Vg max and pnom

M

Nm

234 326 412 521 724 808 1075 1448 724 808 1075 1448

Weight (approx.)



m

kg

32 40 45 53 66 76 95 125 72 73 104 138
1) These values are valid at an absolute pressure of 1 bar in suction port S and for the optimum viscosity range νopt
2) These values are valid at an absolute pressure of 0,8 bar in suction port S and for the optimum viscosity range νopt
